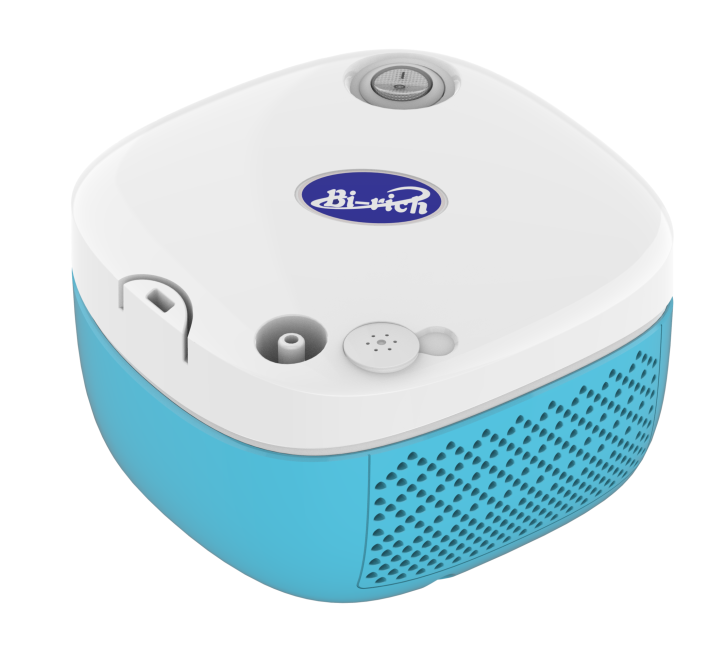

Compressor Nebulizer--BR-CN118
2.Nice design with flip lid
3.Operation smoothly and quietly
4.Effective medication delivery
Specification
1. Power: AC 230 V-50Hz or 120V -60Hz
2. Input Power :160VA or 180VA
3. Rate Current: 0.7A or 1.5A
4. Max Capacity of Medicine cup: 6ml (cc)
5. Average Nebulization Rate: ≥0.18ml/min
6.Mode of Operation: continuous ＞24 hours
7.Max Working Pressure : ≥35Psi (345Kpa; 3.5 Bar)
8.Operation Pressure Range: 9-16Psi(62-110Kpa; 0.6-1.1 Ba )
9.Liter Operation flow: 5-8 LPM
10.Noise: ≤58dB(A) ( at 1 meter distance )
11. MMAD: 3.0um (0.9% saline/ tested by Cascade Impactor)
12.Unit Size: 280 X 165X 90 MM
13.Unit Weight: 1.45 KG
14.Operation Condition: ﹢5℃ to ﹢40℃, 10% RH to 93% RH
15.Suggested Applications : Hospital, clinic, atomizer
room, nursing home, personal home care.
Packing :
-Color gift box+
paper inner support +Instruction manual
-Carton size: 40X 31 X 51CM (8pcs/ carton)
-Net Weight : 14.7 KGS Gross Weight: 15.3 KGS
-1X 20″FT
Container : 3760pcs
Detail description
1.Power: AC 230 V-50Hz or 120V -60Hz
2.Input Power: 160VA or 180VA Max
3.Rate Current: 0.7A or 1.5A
4.Operation Pressure Range: 9-16 psi (62-110kPa)
5..Operating flow range: 5-8 LPM
6.Max Pressure: ≥35 psi(241kPa)
7.Nebulization Rate: 0.2mL/min～0.6mL/min
8.Particle size (MMAD):2.4μm
9.Noise: ≤58 dB(A) (at 1 meter distance)
10.Max Capacity of Medicine cup: 6mL(cc)
11.Residual volume≤1.0ml
12..Operation Condition: +5℃ to + 40℃，30% R.H. to 85% R.H.
13.Transportation and storage conditions:-20℃~60℃,10%R.H.~93%R.H
14.Operating atmospheric pressure range:70～106 kPa
16.Unit Weight: 1.16 KG
Color giftbox+ air bubble bag protect +Instruction manual
Carton size: 48.5 X 23.5 X 45.5 CM (12pcs/ carton)
Net Weight : 11.6 KGS Gross Weight: 12.5 KGS
1 X 20″FT Container : 6480 pcs
